The TireMinder TM-77 and the new TireMinder TM-88C are some of the best tire monitoring systems available. The TM-88C features an upgraded color LCD display and a handful of next generation features. Please read below to learn more.
|
|
 |
 |
|---|---|---|
|
Model |

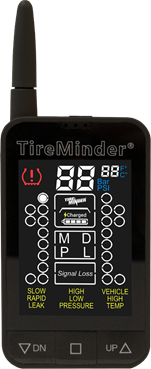

TireMinder TM-77 |

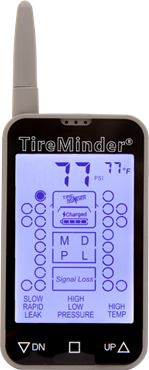

TireMinder TM-88C |
|
Release Date |
June 2016 |
December 2019 |
|
4-Tire Kit |
||
|
6-Tire Kit |
||
|
Features |
|
|
|
Monitor Display Type |
Monochrome LCD |
Color LCD |
|
Auto-Scroll |
Yes – Stops After 2 Revolutions |
Yes – Infinite Auto-Scroll |
|
Simultaneous Tire Readings |
No |
No |
|
Simultaneous Pressure and Temperature Readings |
Yes |
Yes |
|
Updated User Interface with Simple Alert Notifications |
Yes |
Yes |
|
Mode Indicators |
Yes |
Yes |
|
Dedicated On/Off Button |
Yes |
Yes |
|
Vehicle Disconnect |
Yes, Multi-Vehicle Disconnect (Switch Between 3 Different Vehicles) |
Yes, Multi-Vehicle Disconnect (Switch Between 9 Different Vehicles) |
|
Push to Update |
Yes |
Yes |
|
One Touch Reset |
Yes |
Yes |
|
Constant 6 Second Tire Monitoring |
Yes |
Yes |
|
Constant 4 Minute Automatic Pressure and Temperature Updates |
Yes |
Yes |
|
Continues to Update While Stationary |
Yes |
Yes |
|
Low and High Pressure Alerts |
Yes |
Yes |
|
Slow and Rapid Leak Alerts |
Yes |
Yes |
|
Temperature Alerts |
Yes |
Yes |
|
Signal Loss Alerts |
Yes |
Yes |
|
Maximum Tires |
22 |
66 |
|
Signal Booster Included |
Yes |
Yes |
|
Replaceable Transmitter Batteries |
Yes |
Yes |
|
Monitor Battery Life |
2-4 Weeks |
24-48 Hours |
|
Transmitter Battery Life |
9-14 Months |
9-14 Months |
|
Charger |
Micro USB w/DC Adapter |
Micro USB w/DC Adapter |
|
Award Winning American Base Customer Support |
Yes |
Yes |
|
Free Battery Replacement Program* |
Yes |
Yes |
|
Availability |
||
|
Dimensions |
|
|
|
Display Size |
3.15” Diagonally |
3.15” Diagonally |
|
Height (Including Antenna) |
6.02” (152.9mm) |
6.02” (152.9mm) |
|
Width |
2.4” (60.96mm) |
2.4” (60.96mm) |
|
Antenna Length |
2” |
2” |
Auto-Scroll
Our new TM-88C and TM-77 monitors have the ability to automatically scroll to each learned tire position. With Auto-Scroll, you no longer need to manually scroll through each tire position. The TireMinder TM-88C features "Infinite Auto-Scroll," allowing you to automatically loop each tire position. The TireMinder TM-77 features a "Looped Auto-Scroll", which loops through all available tire positions twice.
Multi-Vehicle Disconnect
The TM-88C and TM-77 both feature "Multi-Vehicle Disconnect Mode". The features allows you to monitor multiple different vehicles simultaneously or individually. The TM-77 can monitor 3 vehicles in total, at the same time. The TM-88C can monitor 9 vehicles in total and 3 at the same time.
